Custom Extension Springs Manufacturer

Name: Custom Extension Springs
Brand: Zigoal
Availability: InStock

We specialize in delivering durable, high-performance extension springs, precision, and reliability in the springs, with fast delivery times and customization options.

Custom Any Extension Springs for Your Project

Zigoal offers full capabilities in custom extension springs tailored to your project needs. We can manufacture according to your specific designs, dimensions, material types, surface finishes, and more to meet your specific needs.

Our Custom Extension springs Capability:

Why choose our Extension Springs?

High Tensile Strength

Built for durability and resilience in demanding conditions

Precision Engineered

Ensures exact performance with tight tolerances

Corrosion Resistance

Protective coating for harsh environments

Extended Lifecycle

Designed to resist fatigue and last longer.

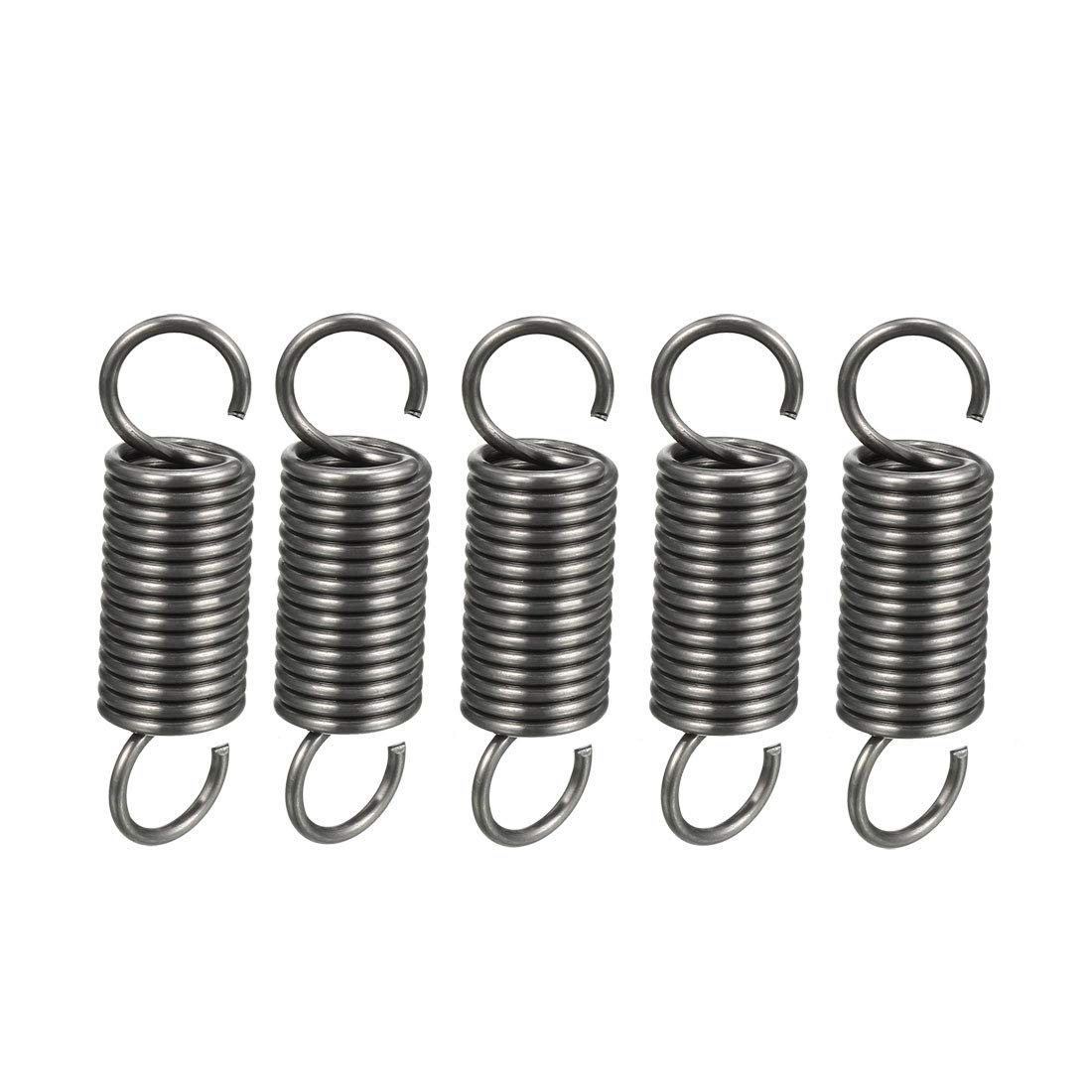

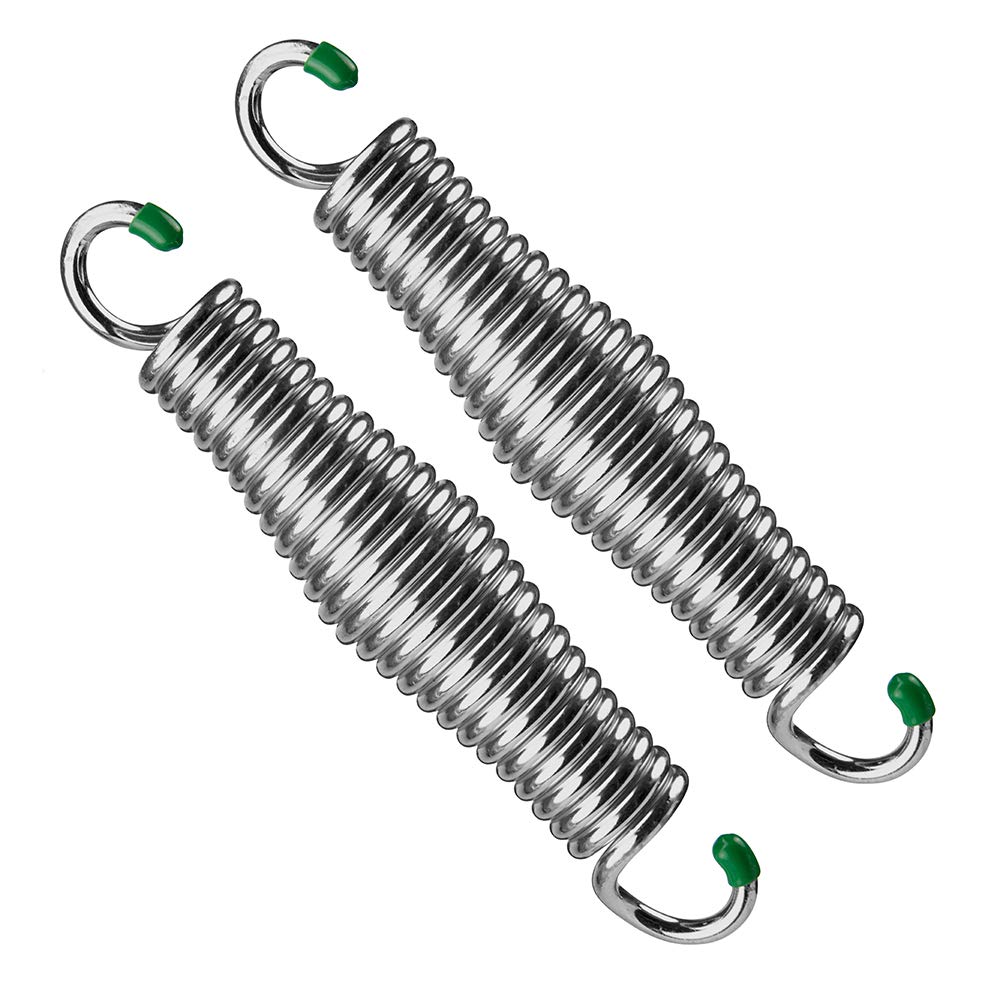

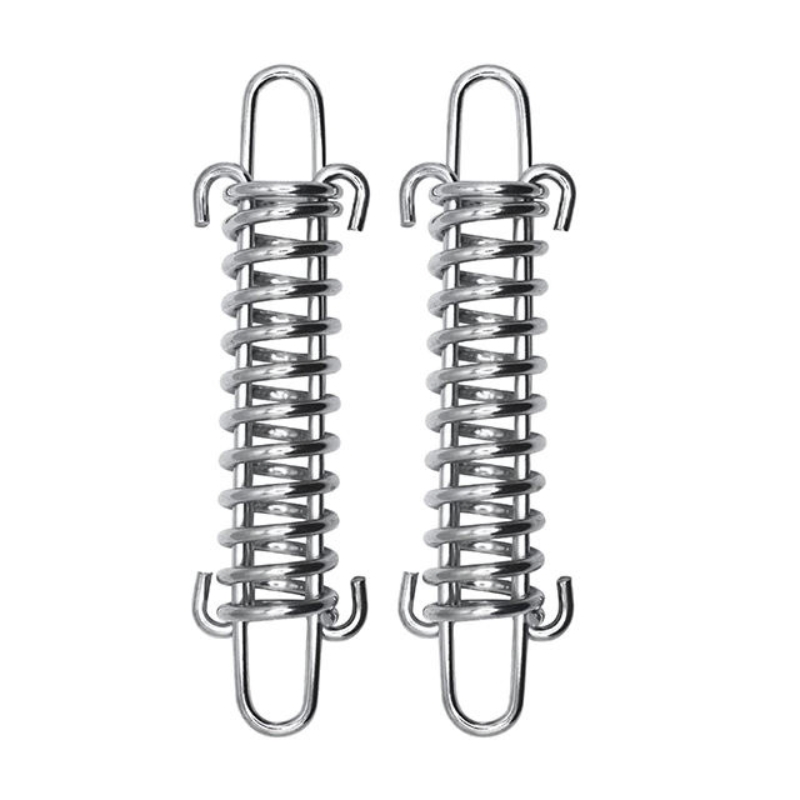

Explore Our Custom Extension Spring Types for Industry

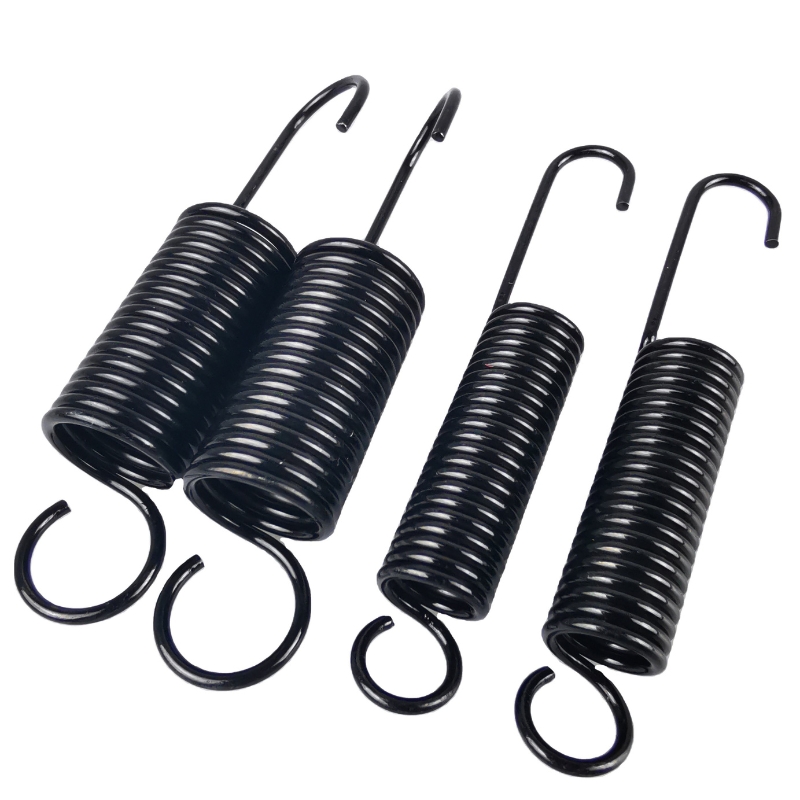

Zigoal is a Custom Extension Spring manufacturer. We provide Helical Extension Springs, Double Loop Extension Springs, Trampoline Springs, Drawbar Springs, Variable Pitch Extension Springs, and Conical Extension Springs. Our high-quality springs cater to the Automotive, Electronics Manufacturing, and Medical Equipment sectors, providing industry-leading versatility, durability, and precision-engineered solutions for diverse applications.

Know About Custom Extension Spring

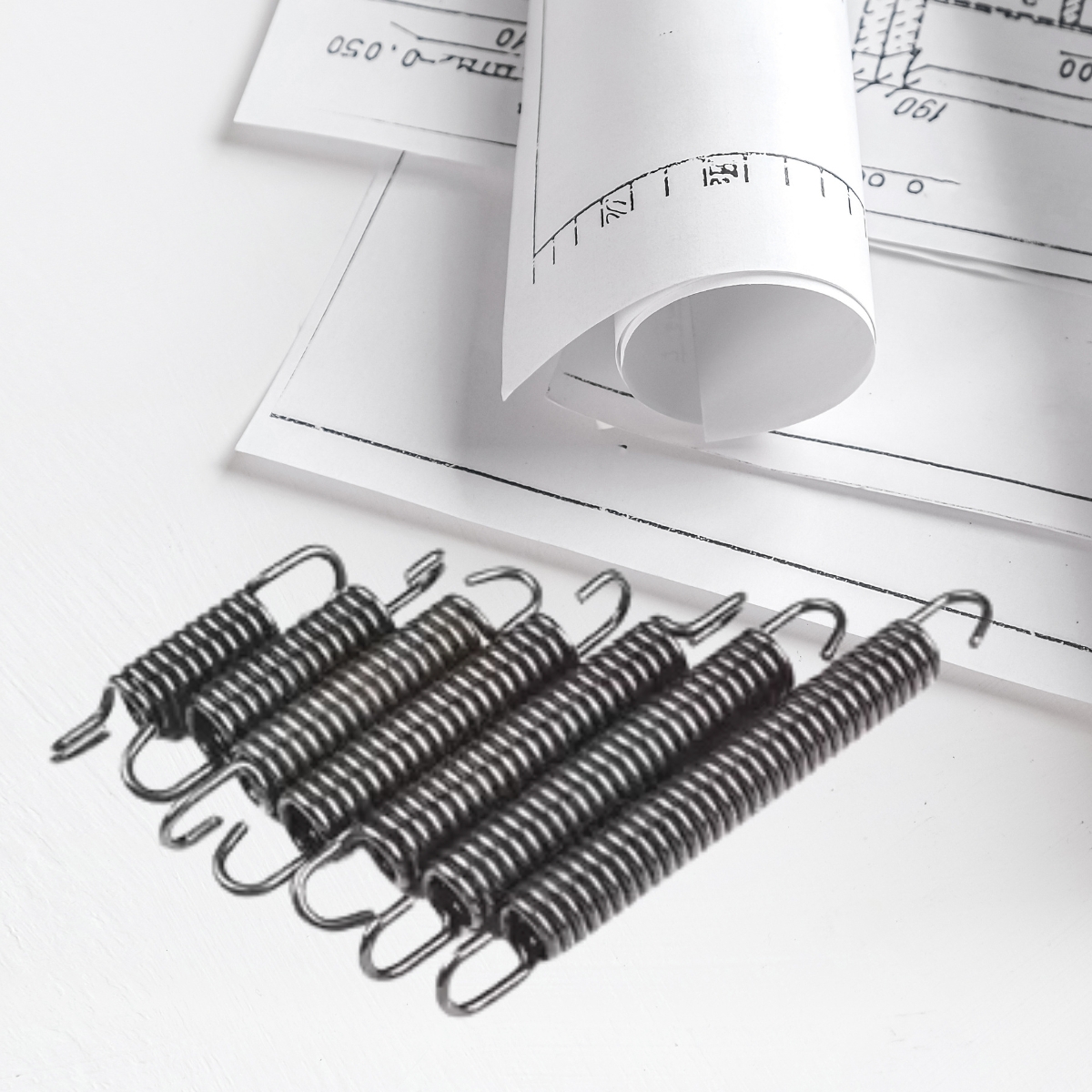

Custom Extension Spring Design

Load requirements, deflection limits, wire diameter, coil diameter, free length, end hook configurations, loop configurations, tension, stress distribution, fatigue life, spring rate, tolerances, performance specifications.

Load Requirements: Defines the maximum force the spring must support without failure.

Deflection Limits: Measures how much the spring can stretch or compress under load.

Wire Diameter: Thickness of the wire used in the spring, crucial for determining strength.

Coil Diameter: Outer diameter of the spring coil, affecting tension and space.

Free Length: The unstressed length of the spring, important for installation fit.

End Hooks and Loops: Components at the spring’s ends that allow attachment to other parts.

Tension and Stress Distribution: Balancing force through the spring to prevent deformation or failure.

Fatigue Life: The number of cycles a spring can endure before failure due to repeated stress.

Spring Rate: The stiffness of the spring, determining how much force is required for deflection.

Tolerances: Allowable variation in spring dimensions during manufacturing.

At Zigoal, we understand that the choice of material is critical in spring manufacturing. Different extension spring materials offer unique properties, making them suitable for specific applications. Our extension spring experts will assist you in selecting the ideal material for your custom made extension springs.

Carbon Steel: Commonly used due to its strength, affordability, and availability.

Stainless Steel: Provides corrosion resistance and durability in harsh environments.

Alloy Steel: Offers enhanced performance under high stress and temperature conditions.

Phosphor Bronze: Known for its electrical conductivity and corrosion resistance, ideal for electrical components.

Beryllium Copper: Highly conductive with good fatigue strength, often used in precision instruments.

Inconel: A high-performance alloy resistant to extreme temperatures and corrosion, suitable for aerospace and industrial applications.

Music Wire: High-carbon steel wire known for its excellent fatigue life and high tensile strength.

Material Selection for Extension Springs

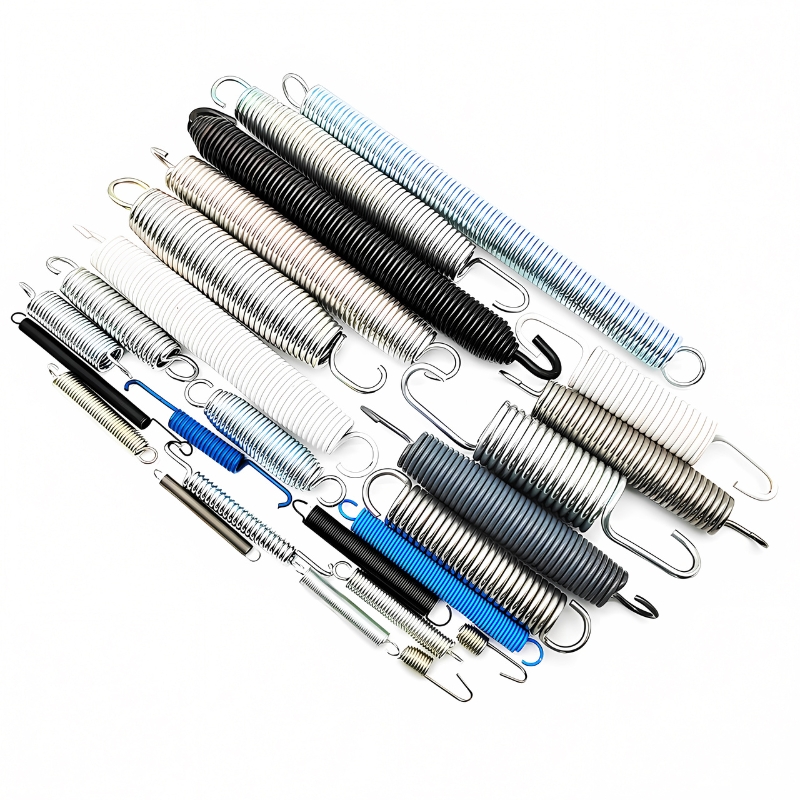

Custom Extension Spring Finishings

Zinc Plating: a popular finish that provides corrosion resistance and an attractive appearance.

Electropolishing: a process that enhances surface smoothness, reduces friction, and increases corrosion resistance.

Powder Coating: A durable, colored finish that adds an extra layer of protection against wear and tear.

Passivation: A chemical treatment that removes contaminants and improves the spring’s resistance to oxidation.

Phosphate Coating: Enhances lubrication properties and corrosion resistance, ideal for industrial applications.

Nickel Plating: Offers a shiny, decorative appearance while providing excellent resistance to corrosion.

Teflon Coating: Creates a low-friction surface, making it ideal for applications requiring smooth movement.

Black Oxide Finish: Improves aesthetics while providing a moderate level of corrosion resistance.

Extension springs, integral to numerous mechanical applications, are equipped with various types of ends or hooks.

Machine Hooks: Standard end type providing durability and ease of attachment.

Crossover Hooks: Offers better load distribution, reducing stress on the spring’s end.

Extended Hooks:Longer hooks designed for specific attachment requirements and increased flexibility.

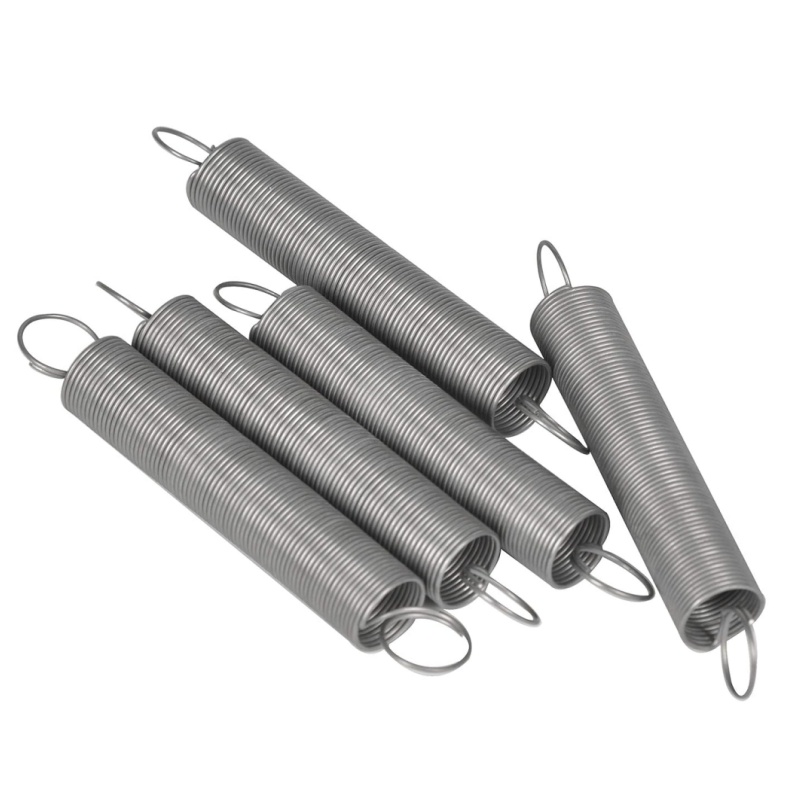

Double Loop Ends: Provides a stronger attachment point, suitable for high-stress applications.

V-Hooks:V-shaped ends that ensure a secure fit in specialized installations.

Custom Bent Ends: Tailored designs to match specific application needs, enhancing spring functionality.

Threaded Inserts: Facilitates a secure and adjustable attachment method for precise adjustments.

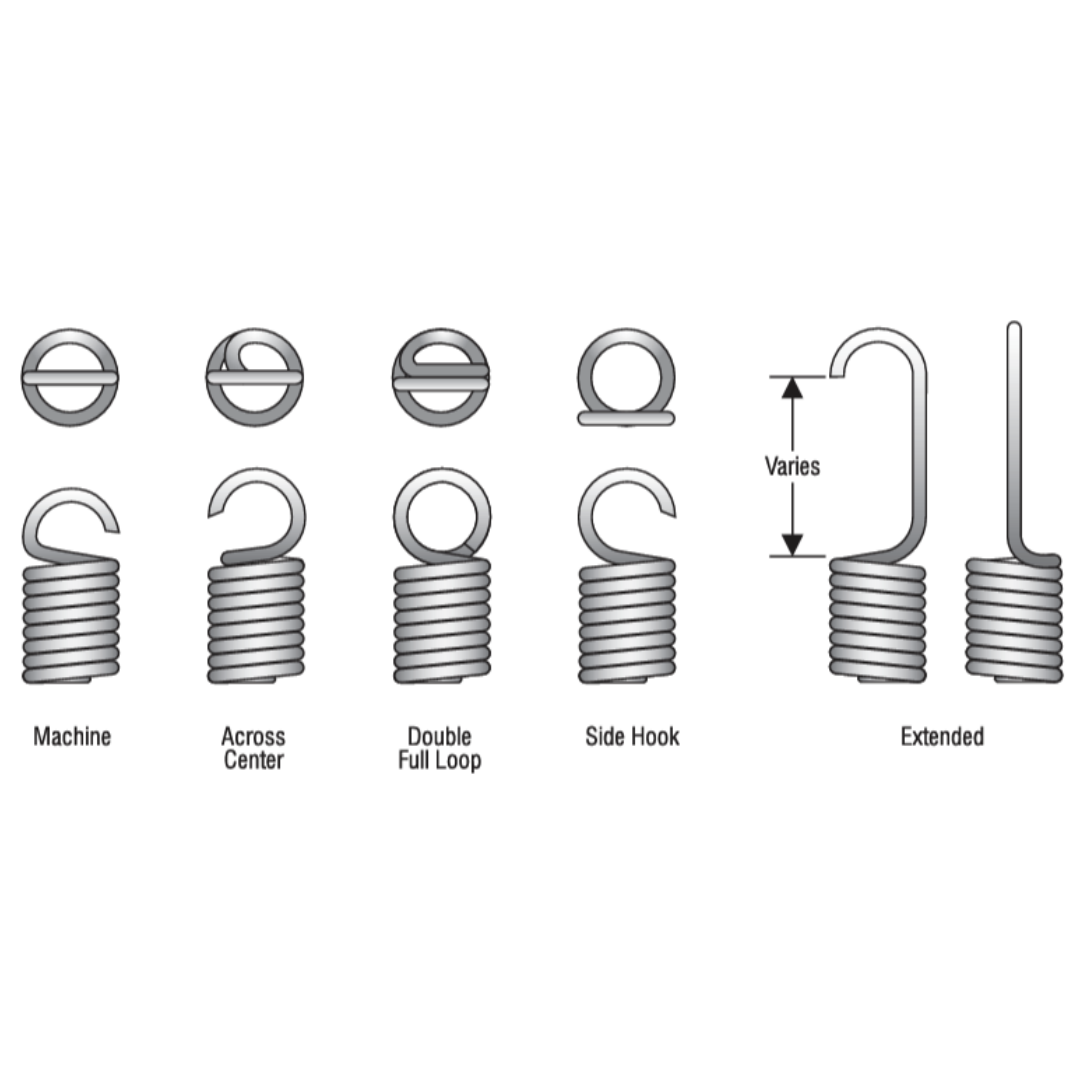

Extension Spring Hook Types for Optimal Performance

Custom Extension Spring Applications

Custom extension springs power diverse applications, from automotive brakes and throttles, aerospace landing gear, and medical devices to industrial machinery, consumer products, agricultural equipment, electronics, and construction tools, ensuring precision and durability across industries solutions.

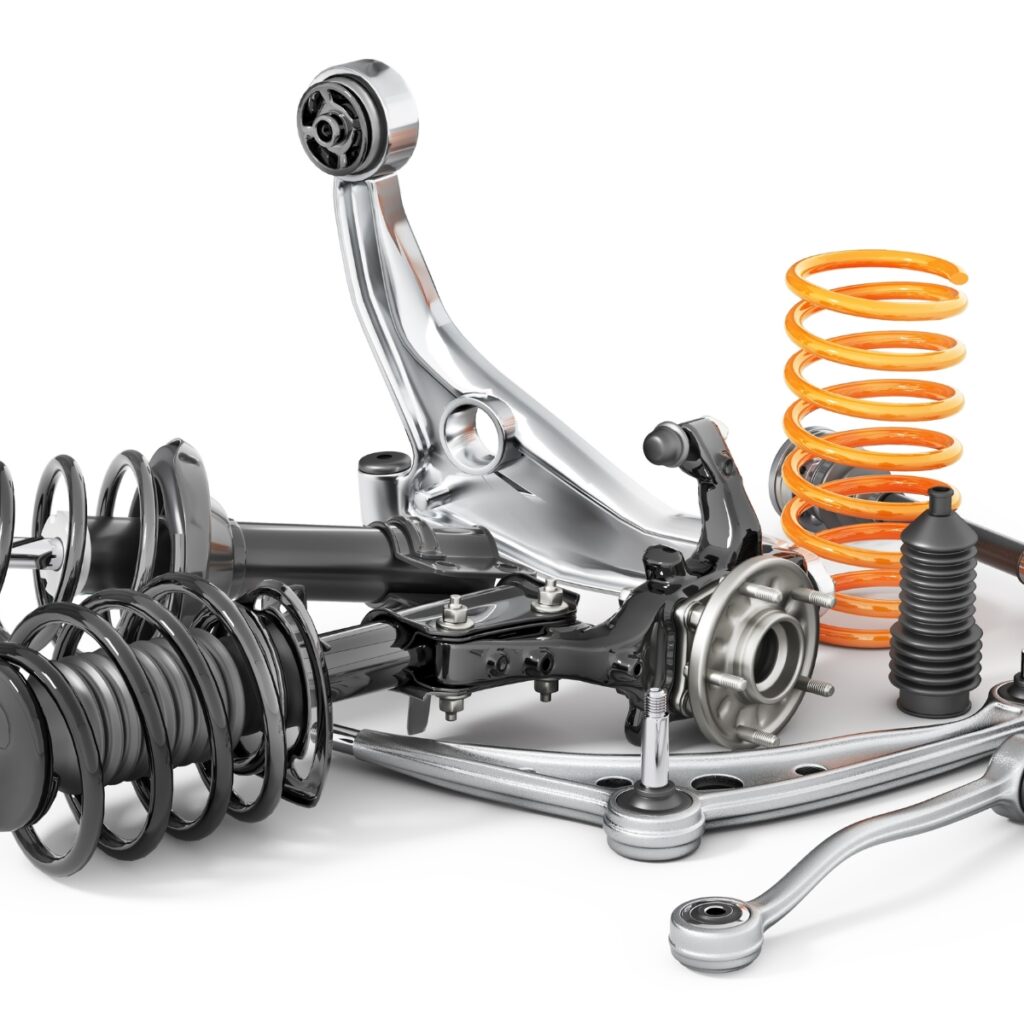

Automotive Industry

Custom extension springs play a crucial role in vehicle systems, ensuring components return to their original positions and manage dynamic loads.

Throttle Return Springs: Used in throttle mechanisms to return the throttle valve to a closed position after acceleration.

Brake Springs: Assist in returning brake components, like brake shoes or calipers, to their rest position.

Door Springs: Springs are used in door handles, latches, or trunk releases to provide smooth return actions.

Suspension Spring: Provide balancing tension in adjustable suspension parts.

Fuel Injector Systems: Help in controlling fuel flow by managing tension within injectors.

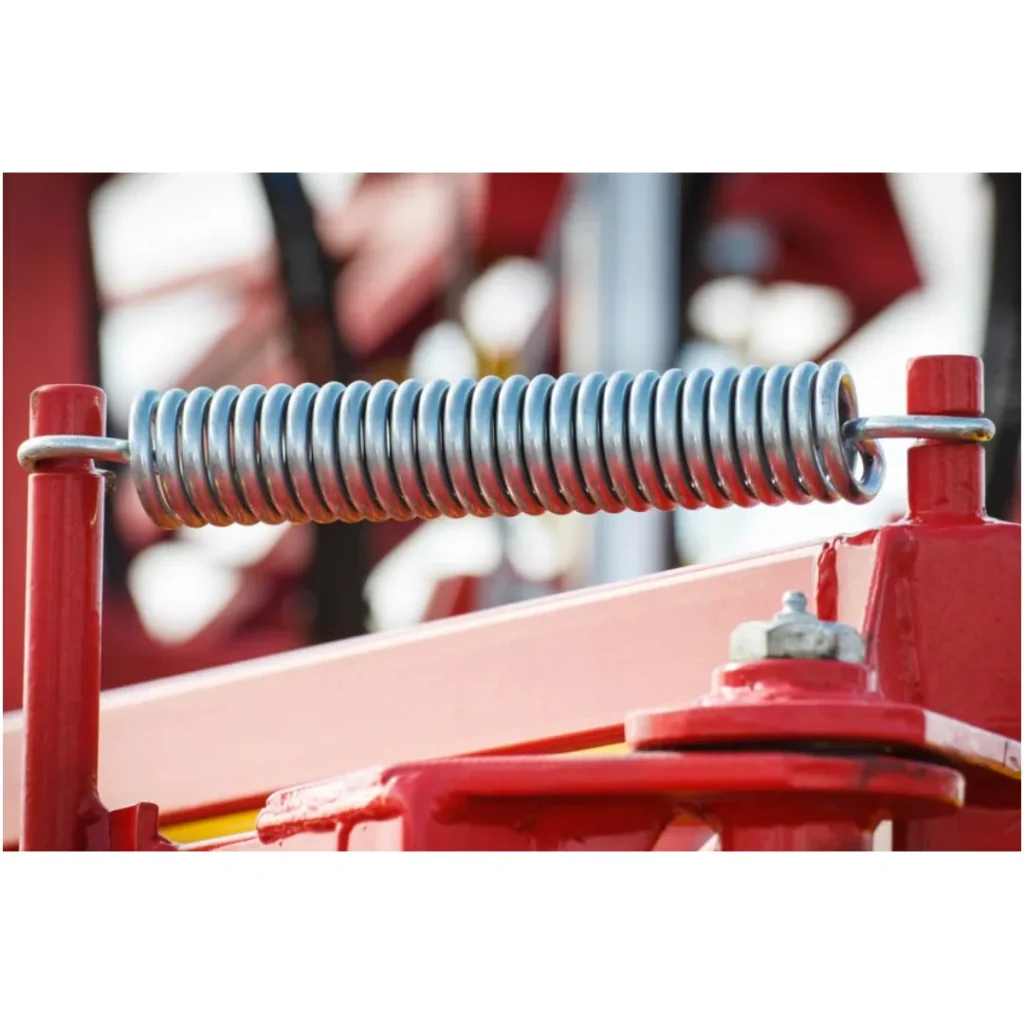

Aerospace Industry

Custom extension springs must meet high reliability and stringent material standards in aerospace applications, given the extreme conditions and safety requirements.

Landing Gear Retraction Systems: Springs assist in retracting the landing gear and holding it securely in position.

Cockpit Controls: Provide tension in levers and other control mechanisms.

Aerospace Locking Mechanisms: Ensure that components such as doors or hatches return to a locked position.

Actuator Mechanisms: Springs manage the movement of actuators in wing flaps or rudders.

Satellite Deployment Mechanisms: In space applications, springs help control deployment of solar panels or antennae.

Medical Devices

In medical technology, custom extension springs must often meet biocompatibility standards and provide precise, controlled movements.

Surgical: Springs ensure instruments like scissors or clamps return to their rest position.

Drug Delivery Systems: Springs manage the controlled release of medication in infusion pumps or injectors.

Hospital Beds: Springs help adjust bed positioning and support patient movement.

Prosthetic Devices: Provide flexibility and controlled motion in joints of prosthetics.

Rehabilitation Devices: Used in devices for physical therapy to offer resistance or return motion.

Consumer Products

In everyday products, custom extension springs offer utility in a wide variety of common devices that require tension or controlled movements.

Garage Doors: Springs are essential for counterbalancing the weight of doors and enabling smooth opening and closing.

Toys and Gadgets: Springs enable movement in toys, gadgets, and retractable parts.

Appliance Doors: Assist in the smooth opening and closing of doors in ovens, dishwashers, or washing machines.

Exercise Equipment: Provide tension and resistance in equipment like rowing machines or weight trainers.

Clothes Pegs: Enable the gripping function through tension in the peg’s mechanism.

Electronics and Electrical Equipment

In electronics, precision and miniaturization are critical. Custom extension springs are often designed to fit in small, intricate mechanisms.

Battery Contacts: Provide consistent contact pressure for batteries in portable devices.

Switch Mechanisms: Return switches or buttons to their original position after being pressed.

Reel and Retractable Cords: Help retract power or data cables for storage and protection.

Circuit Breakers: Maintain tension in mechanical components that control electrical circuits.

Printers and Scanners: Springs control the movement and return of mechanical parts like rollers or print heads.

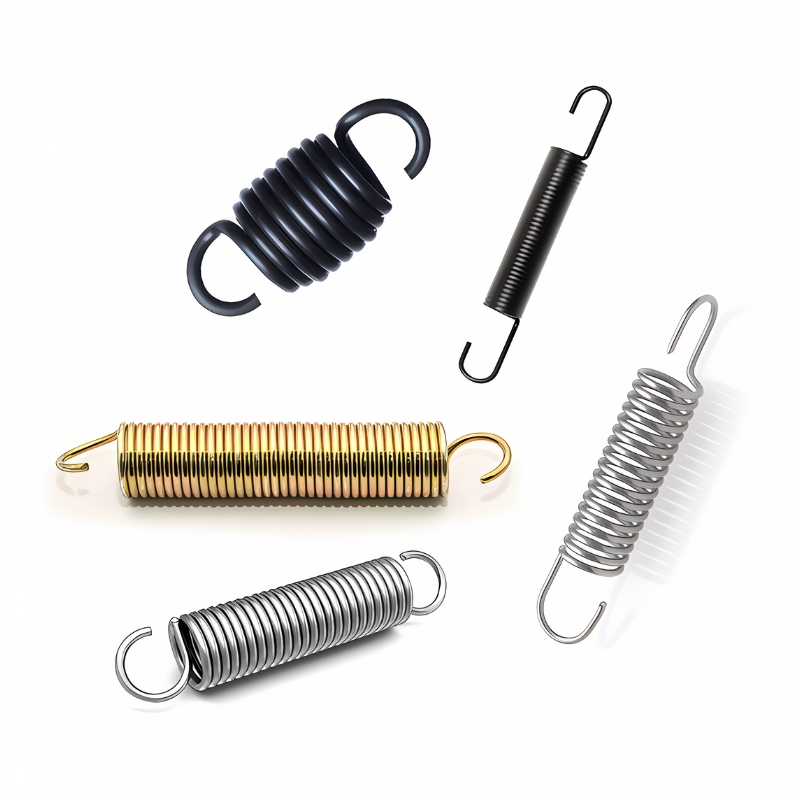

Rapid Prototyping for Custom Extension Springs

Rapid prototyping is at the core of Zigoal’s manufacturing capabilities, focused on transforming concepts into precise, tangible products efficiently.

Speedy Development: Our extension springs are designed to meet application requirements swiftly, cutting lead times to deliver prototypes within days.
Cutting-Edge Design: Utilizing CAD-based spring design and CNC coiling, we ensure the versatility of tension spring designs to meet load requirements.
Cost-Effective Production: The design process minimizes waste while adhering to load requirements, keeping projects within budget.
Client Collaboration: We understand spring needs closely and collaborate to provide tailored spring solutions.
Quality Assurance: With rigorous testing protocols for each tension spring, our process guarantees the highest quality.
Market-Ready Prototypes: Our prototypes are designed for practical application and initial tension testing, easing the transition to mass production.

Need a prototype first? See our custom spring prototyping & design services — samples in 2–3 days and free of charge when the material is in stock and no tooling is needed, or 5–7 days when material or tooling has to be prepared.

Why Zigoal is Trusted by 1000+ Clients?

One-stop Custom Solutions

The ability to customize springs to specific requirements is crucial. As an engineer, ensuring that the springs fit the exact specifications of the project is paramount.

Quality and Precision

Quality and precision in manufacturing are crucial for durable, high-performance springs.

Robust Supply Chain Management

Efficient supply chain management ensures timely delivery and consistent product availability, critical for project timelines.

Strict Quality Control

Dimensional Inspection: Precise measurements ensure springs meet specified dimensions and tolerance levels.
Material Testing: Verifies material properties like tensile strength, hardness, and composition to ensure compliance with required specifications.
Load Testing: Confirms the correct force output by testing springs under specified loads and displacements.
Fatigue Testing: Simulates long-term usage by testing springs through multiple cycles, predicting lifespan and performance.
Environmental Testing: Springs for harsh conditions undergo additional tests, including corrosion resistance and temperature cycling, to ensure durability.

Certified Quality

Service Global. Precision Engineering. Quality Guaranteed. High Durability. No Failure. Optimal Performance.

Extension Spring Manufacturing Process

Step-by-Step Overview of the Spring Manufacturing Process

Spring Winding

The material is wound into a spiral or coil form using specialized machinery.

End Shaping

Shaped according to the design requirements, which may involve bending, looping, or creating specific end configurations

Heat Treating

Post-winding heat treatment may be applied to set the spring's shape, relieve stress, and improve its mechanical properties

Cleaning

Post heat treatment, the springs are thoroughly cleaned to remove any oil or residue

Surface Treatment

Can be applied for corrosion resistance, improved wear characteristics, or other functional benefits

Testing

Springs undergo various inspections to ensure they meet the design dimensions, tolerances, and quality standards

Simple 3 Steps to Custom Spring

Send Your Inquiry

Fill out our contact form with your details and attach relevant drawings or specifications for your custom springs

Sample and Production

We create a prototype of your customized spring for approval and initiate manufacturing upon your confirmation that it meets all specifications

Parts are Shipped!

Zigoal's state-of-the-art digital manufacturing process ensures rapid production with turnaround times as fast as few days

Our Happy Clients Say

At Zigoal, we pride ourselves on building strong, lasting relationships with our diverse clientele. Our journey over the years has been marked by successful collaborations with a multitude of industries, each with unique demands and high standards.

Emily Davis

Engineering Manager

Working with Zigoal has been a breeze. Their one-stop custom spring solutions have improved our machinery’s efficiency, their expertise and quality are unmatched. And Lily from their team is a pleasure to collaborate with.

John Smith

Procurement Director

In my role as Procurement Director at XYZ Tech Solutions, I’ve partnered with Zigoal for years, and their custom springs have always exceeded our expectations. Their expertise and quality are unmatched.

Michael Johnson

Strategic Project Manager

As a Robotics Strategic Project Manager at Global Robotics, I can confidently say that Zigoal’s extension springs have been an integral part of our robotic systems. Peter’s team provided tailored solutions that have been crucial to our success.

Custom Extension Springs FAQ

Clearing the Confusion and Enhancing Customer Satisfaction Efficiency about Custom Extension Spring Manufacturer in China. Feel free to reach out to our professional team for expert guidance.

Which material should I choose for my custom extension springs?

The choice of material depends on the application. Common materials include carbon steel, stainless steel, and alloy steel. Stainless steel is ideal for corrosion resistance, while carbon steel is cost-effective for general use. Let us know your application, and we can recommend the best material.

What is the lead time for production?

Lead times vary depending on the complexity and quantity of the springs ordered. Custom extension spring orders are typically completed within 7 to 15 days, and an expedited service is available when you need it sooner. We will provide an estimated lead time once we review your project specifications.

What is the minimum order quantity?

The minimum order quantity depends on the specific requirements of your project. We can accommodate small prototype orders as well as larger production runs. Feel free to discuss your project with us to determine the best solution.

What should I provide for getting a custom quote?

To prepare an accurate quote, please send us your drawing or a sample, along with the key specifications: wire diameter, outer diameter, free length, hook type, material, surface finish, load requirements, and order quantity. If you don’t have a drawing, tell us about your application and our engineers will help you define the specifications.

Do you provide prototype or sample services?

Yes, we offer prototype and sample services for custom extension spring designs. This allows you to test the springs before committing to a larger order. Please contact us to discuss sample production options.
